Polyethylene Systems
Polyethylene pipe and fittings are the ideal engineering choice where the clients requires a lightweight, corrosion free and flexible material.
Polyethylene pipe is suitable for both potable and non-potable water systems.
It can also be used for many other applications including gas, barrier pipe, drainage and utility ducting.
Pipes are available in various wall thicknesses (SDRs) to suit the pressure and application.
Pressure pipes are normally joined by either electrofusion or butt fusion.
In addition there are mechanical fittings which can be used for repairs or transitioning to valves or other materials.
Depending on the diameter of the pipes then both coils and sticks are available.
APP Fusion Group are able to offer a complete package of pipe, fittings and jointing equipment for polyethylene pressure systems.
The jointing equipment is available either for Hire or Sale.
APP Fusion Group are also able to offer technical advice and training in our own in-house facility where required.
Pipes are available in various wall thicknesses (SDRs) to suit the pressure and application.
Pressure pipes are normally joined by either electrofusion or butt fusion.
In addition there are mechanical fittings which can be used for repairs or transitioning to valves or other materials.
Depending on the diameter of the pipes then both coils and sticks are available.
APP Fusion Group are able to offer a complete package of pipe, fittings and jointing equipment for polyethylene pressure systems.
The jointing equipment is available either for Hire or Sale.
APP Fusion Group are also able to offer technical advice and training in our own in-house facility where required.
THE GOOD GUIDE TO
ELECTROFUSION JOINTING
THE GOOD GUIDE TO
BUTT FUSION JOINTING
ELECTROFUSION FITTINGS
ELECTROFUSION COUPLER
LOW PRESSURE ELECTROFUSION COUPLER
LOW PRESSURE ELECTROFUSION COUPLER
A range of low pressure couplers specifically developed for thin walled pipe in SDR17-26.
Further Information

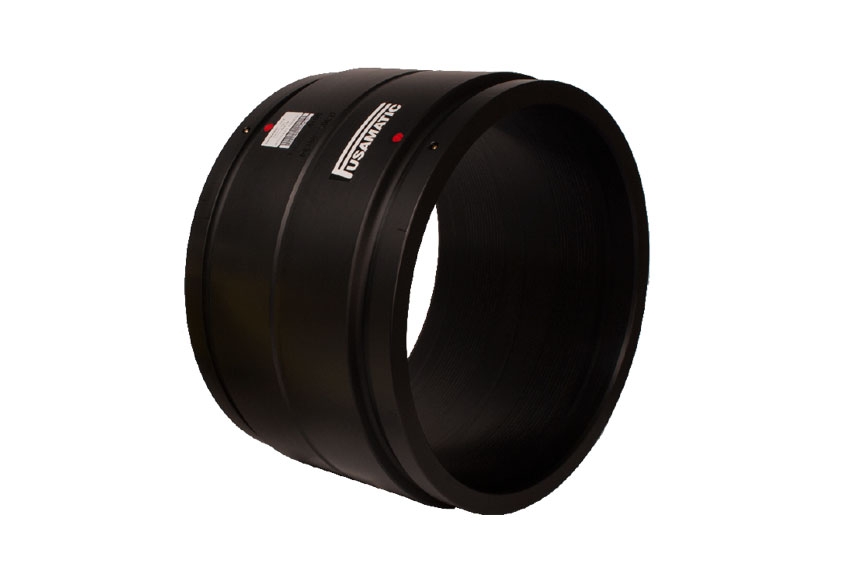

LARGE DIAMETER COUPLER
LARGE DIAMETER COUPLER
PE100 Black
FSN – SDR11-26 – Water PN16 / Gas 10 Bar
FSV – SDR17-26 – Water PN10 / Gas 6 Bar
d450-630mm (d710-1200mm available on request)
Further Information

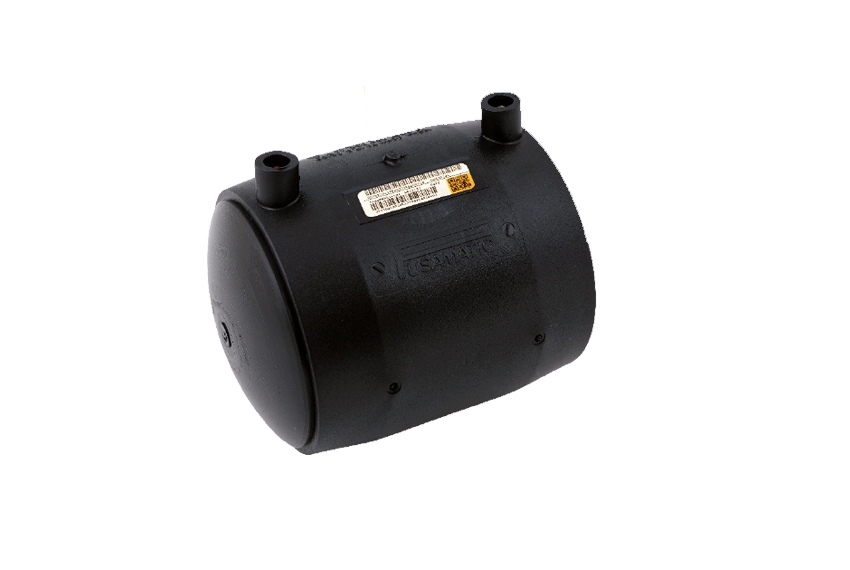

END CAP

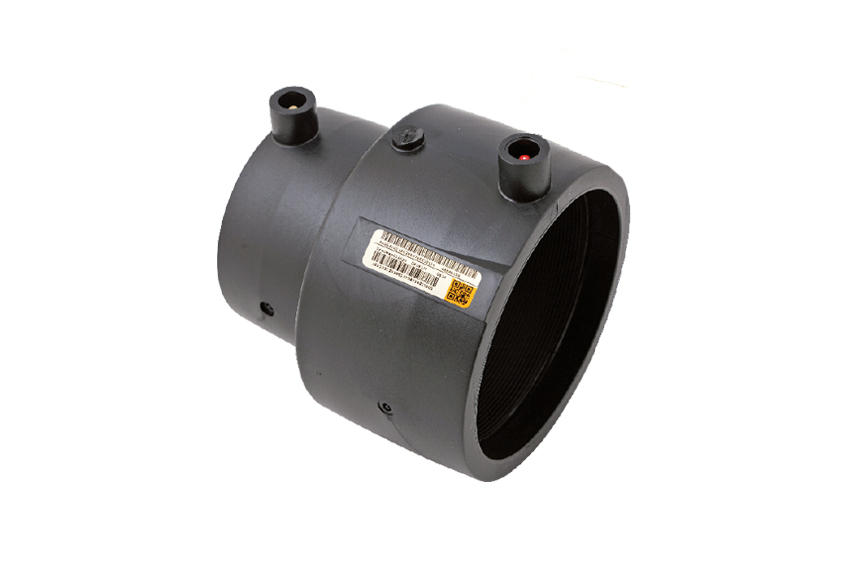

REDUCER

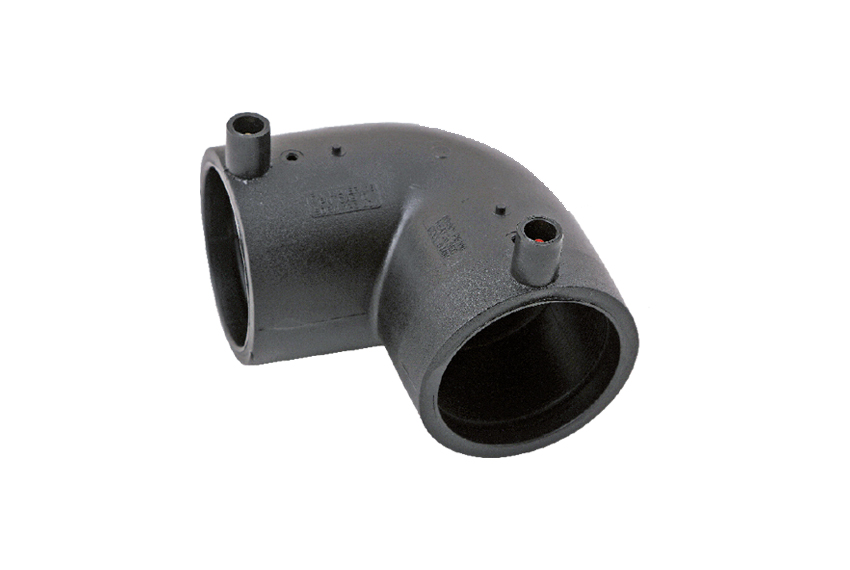

90° ELBOW

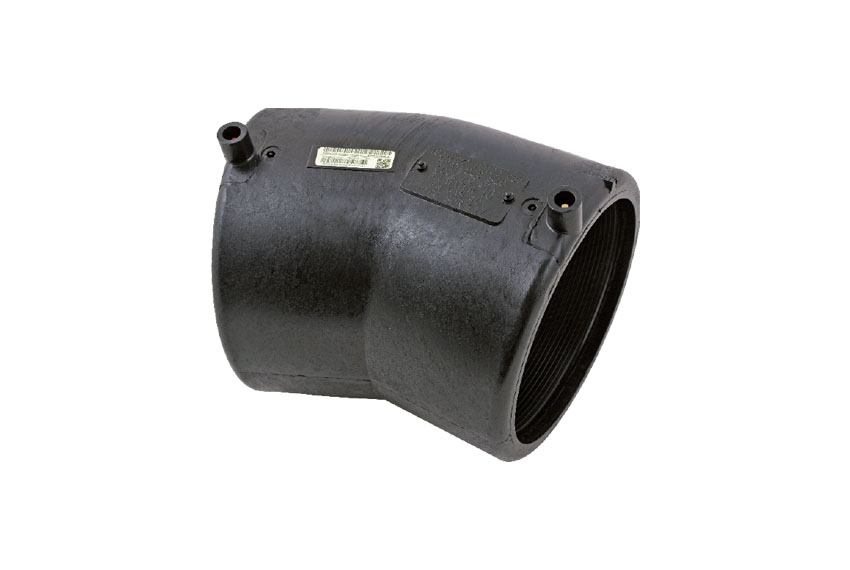

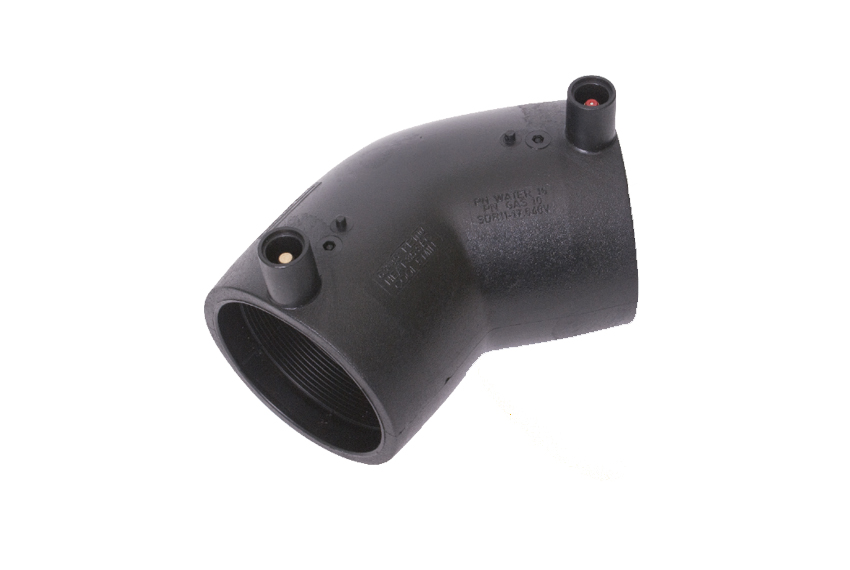

45° ELBOW
22.5° ELBOW
EQUAL TEE
REDUCING TEE

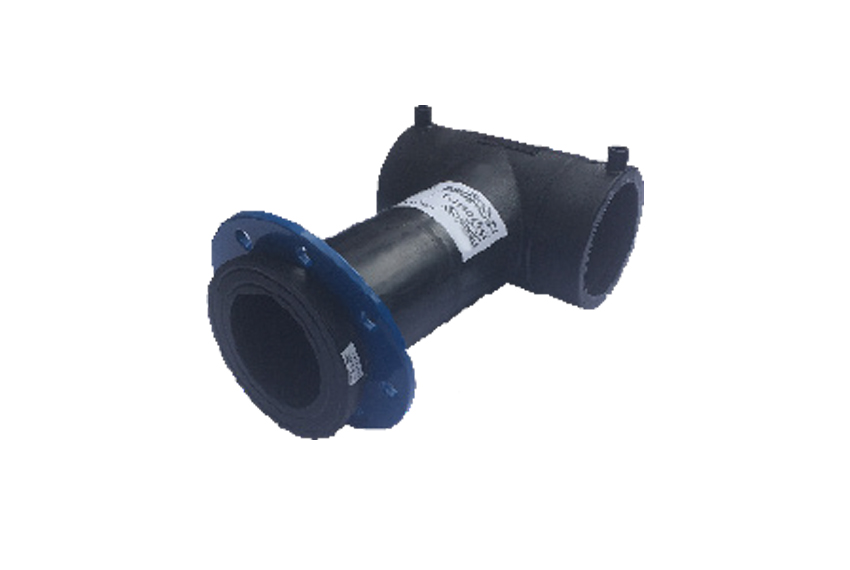

FLANGED TEE
FLEXTEE TAPPING TEE U/P
MULTISEAL TAPPING TEE S/L
MULTISEAL TAPPING TEE S/L
PE100 – Gas 10 Bar / Water PN16
For UK Gas applications – Gas 5.5 bar (Class B) / Gas 7 bar (Class C)
d63x20 – 355x32mm
(20, 25 and 32mm outlet) d250x63 – 400/450x63mm (63mm outlet – 40mm and 50mm outlet available upon request)
Further Information
d63x20 – 355x32mm
(20, 25 and 32mm outlet) d250x63 – 400/450x63mm (63mm outlet – 40mm and 50mm outlet available upon request)

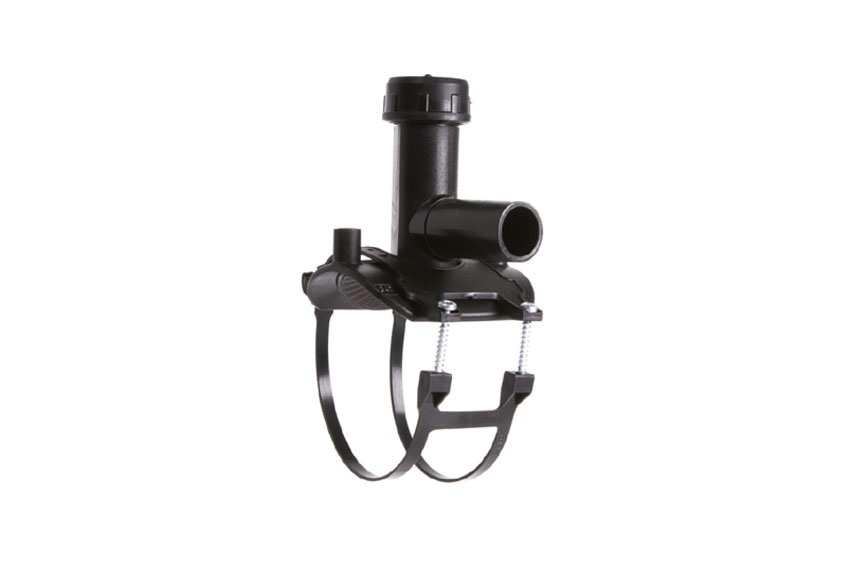

MULTISEAL TAPPING TEE U/C
MULTISEAL TAPPING TEE U/C
PE100 Black – Gas 10 Bar / Water PN16
For UK Gas applications – Gas 5.5 bar (Class B) / Gas 7 bar (Class C)
d40x20 – 225x32mm (20, 25 and 32mm outlet)
d63x40 – 225x63mm (40, 50 and 63mm outlet)
Further Information
BRANCH SADDLE S/L

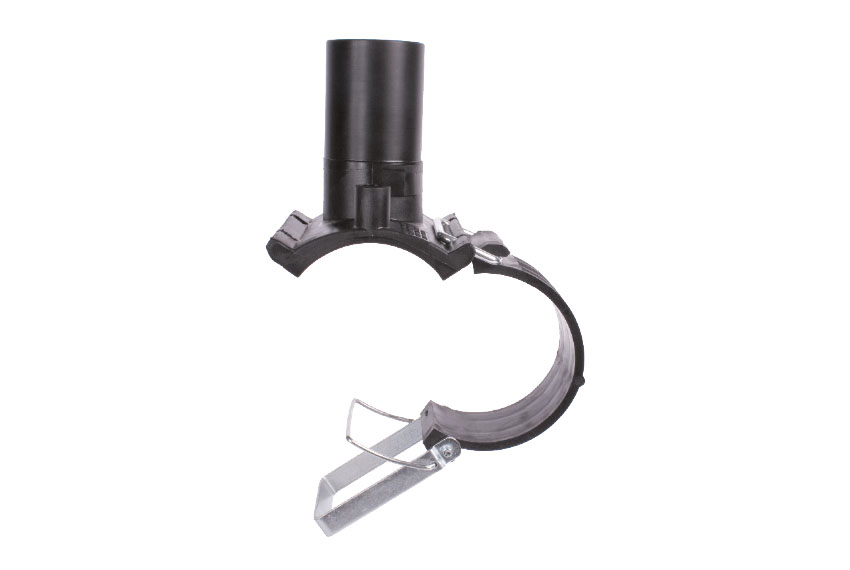

BRANCH SADDLE U/P
BRANCH SADDLE U/P
PE100 – Gas 10 Bar / Water PN16
d63x40 – 225x63mm
(40, 50 and 63mm outlet)
Further Information
d63x40 – 225x63mm
(40, 50 and 63mm outlet)
BRANCH SADDLE U/P
BRANCH SADDLE U/P
PE100 – Gas 10 Bar / Water PN16
d40x20 – 90×63
(20, 25, 32, 40, 50 and 63mm outlet)
Download Product Literature
(20, 25, 32, 40, 50 and 63mm outlet)
BRANCH SADDLE U/P
BRANCH SADDLE U/P
PE100 – Gas 10 Bar | Water PN16
d90x90 – 250x125mm
(90, 110 and 125mm outlet)
Download Product Literature
d90x90 – 250x125mm
(90, 110 and 125mm outlet)

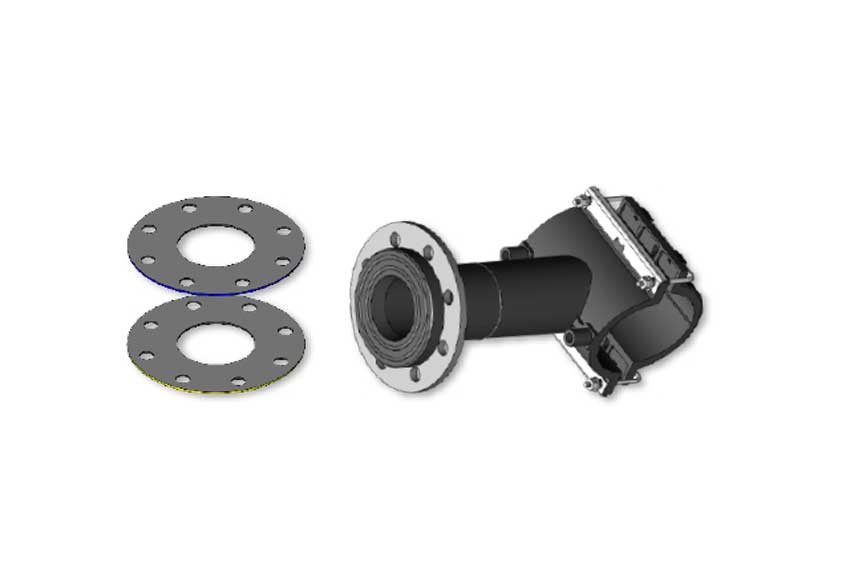

FLANGED BRANCH SADDLE U/P
FLANGED BRANCH SADDLE U/P
PE100 – Gas 10 Bar | Water PN16
d110xDN80 – d630xDN100
Further Information
d110xDN80 – d630xDN100
FLANGED BRANCH SADDLE U/P – FASTCUT
FLANGED BRANCH SADDLE U/P – FASTCUT
PE100 – Gas 10 Bar / Water PN16
d250xDN150 – d630xDN150
Only available through approved fastcut installers
Further Information
Only available through approved fastcut installers

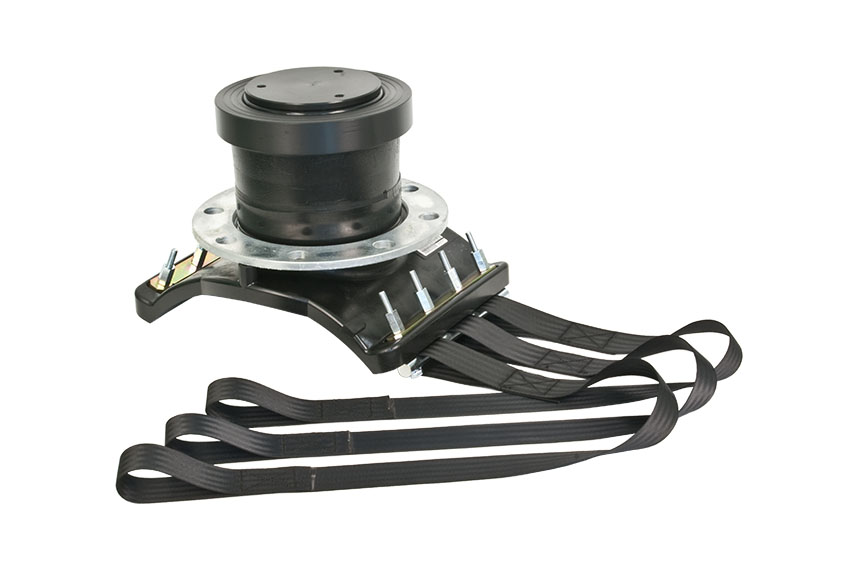

FLANGED BRANCH SADDLE U/P – ALH FLOWSTOP
FLANGED BRANCH SADDLE U/P – ALH FLOWSTOP
PE100 – Gas 10 Bar
d315xDN150 – d400xDN150
Only available through approved fastcut installers
For use with ALH flowstop bagtube
Further Information
Only available through approved fastcut installers
For use with ALH flowstop bagtube

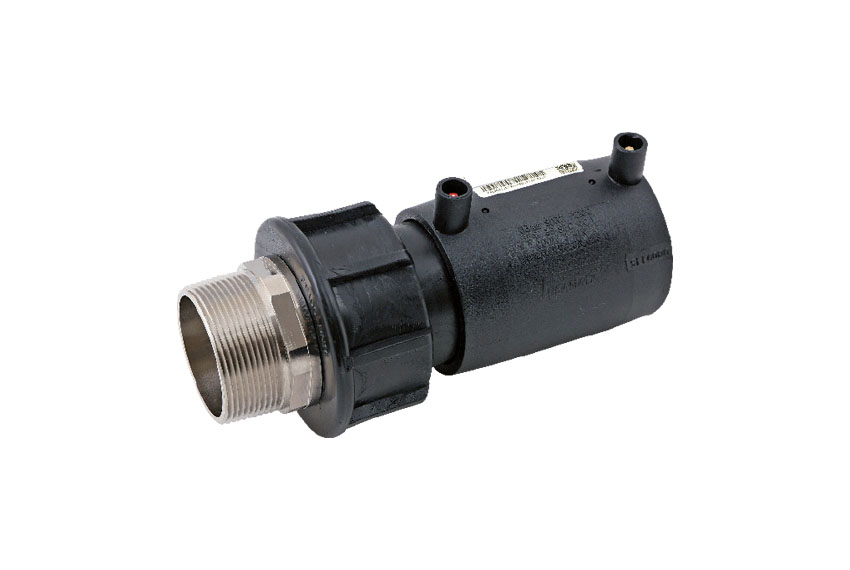

MALE TRANSITION COUPLER

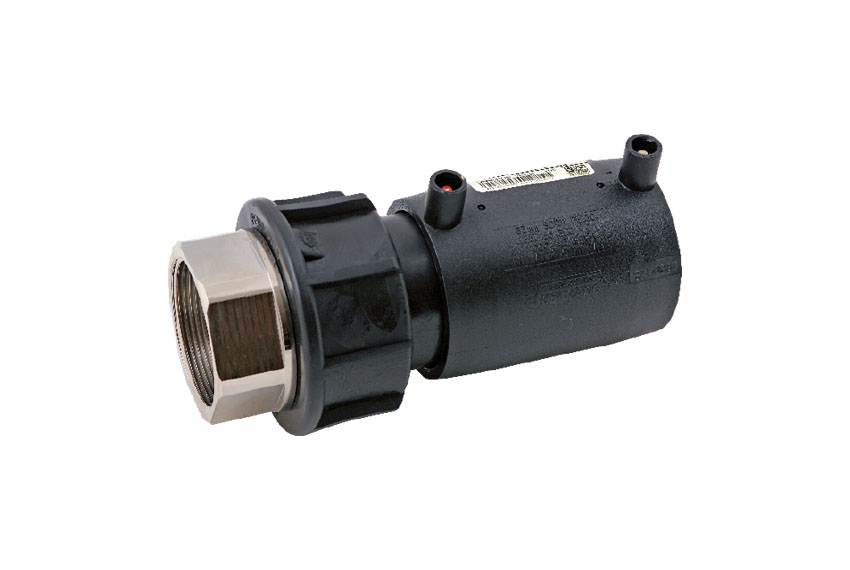

FEMALE TRANSITION COUPLER

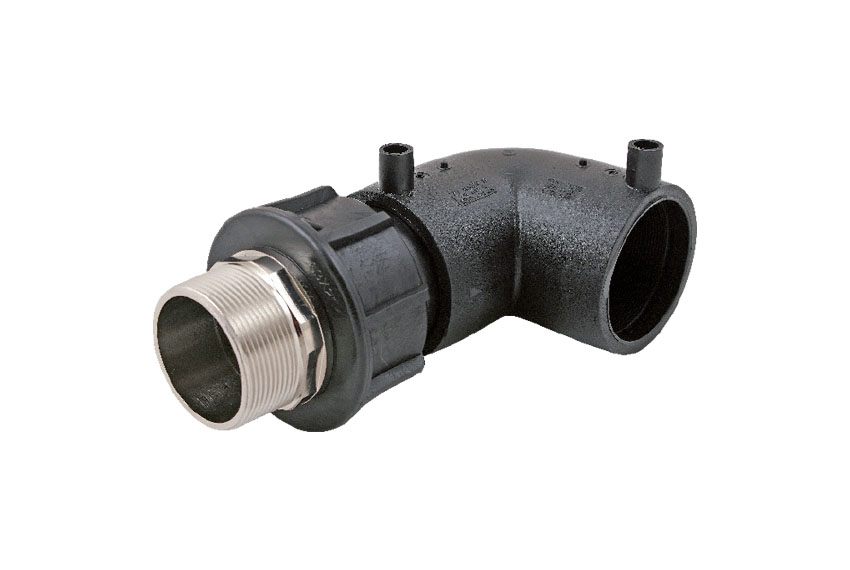

MALE TRANSITION 90° ELBOW

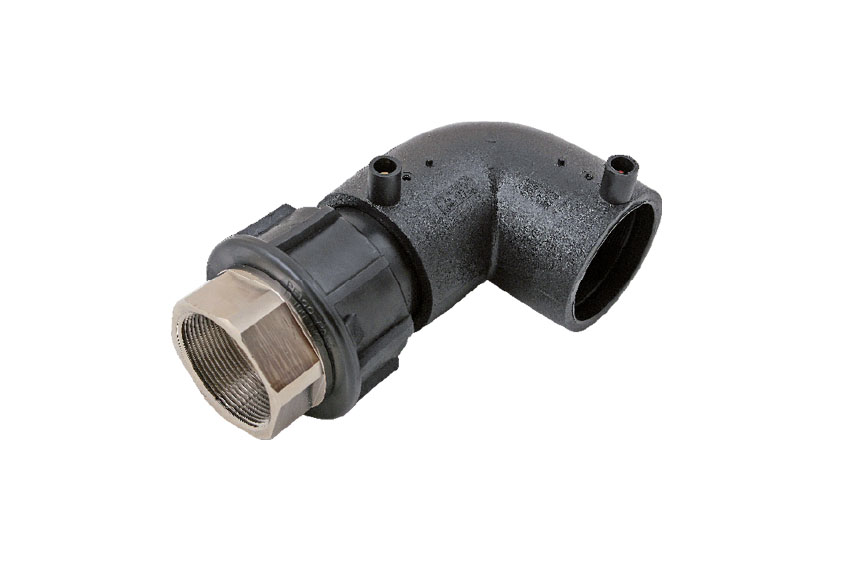

FEMALE TRANSITION 90° ELBOW
MALE TRANSITION 45° ELBOW
FEMALE TRANSITION 45° ELBOW
BALLOON SADDLE
BALLOON SADDLE
PE100 – Gas 10 Bar / Water PN16
d90x2½” – 250×2½”
Red cap protects external thread
Further Information
d90x2½” – 250×2½”
Red cap protects external thread
TRANSITION SADDLE

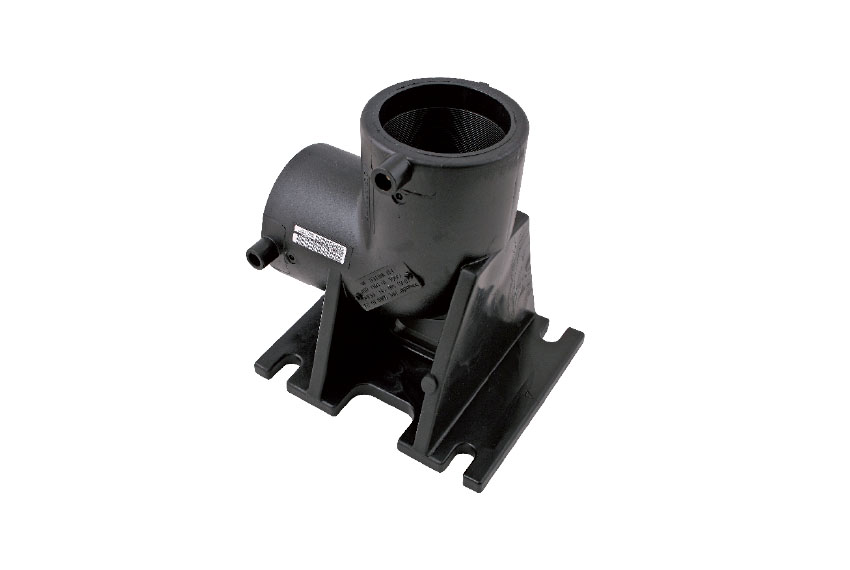

DUCKFOOT BEND
DUCKFOOT BEND KIT
DUCKFOOT BEND KIT
PE100 – Water PN16
d63xDN80 – d180xDN80
Kit: EF Bend, EF Coupler and/or Reducer*, Spigot Reducer*, Riser, Flange Gasket, Backing ring**, Bolts**, Nuts**, Washers
*Spigot Reducer and Coupler in all kits except 90x80NP16
**Rilsan Coated
Download Product Literature
d63xDN80 – d180xDN80
Kit: EF Bend, EF Coupler and/or Reducer*, Spigot Reducer*, Riser, Flange Gasket, Backing ring**, Bolts**, Nuts**, Washers
*Spigot Reducer and Coupler in all kits except 90x80NP16
**Rilsan Coated

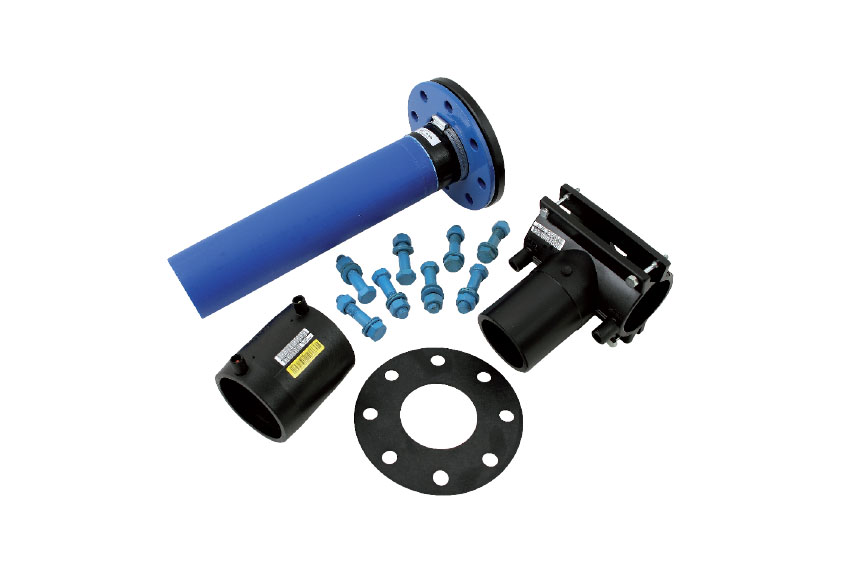

HYDRANT BRANCH SADDLE KIT
HYDRANT BRANCH SADDLE KIT
PE100 – Water PN16
d90xDN80 – d250xDN80
Kit: EF Hydrant Branch Saddle, Coupler*, Riser, Flange Gasket, Backing ring**, Bolts**, Nuts**, Washers**
*Coupler in kit is 90mm
**Rilsan Coated
Download Product Literature
d90xDN80 – d250xDN80
Kit: EF Hydrant Branch Saddle, Coupler*, Riser, Flange Gasket, Backing ring**, Bolts**, Nuts**, Washers**
*Coupler in kit is 90mm
**Rilsan Coated

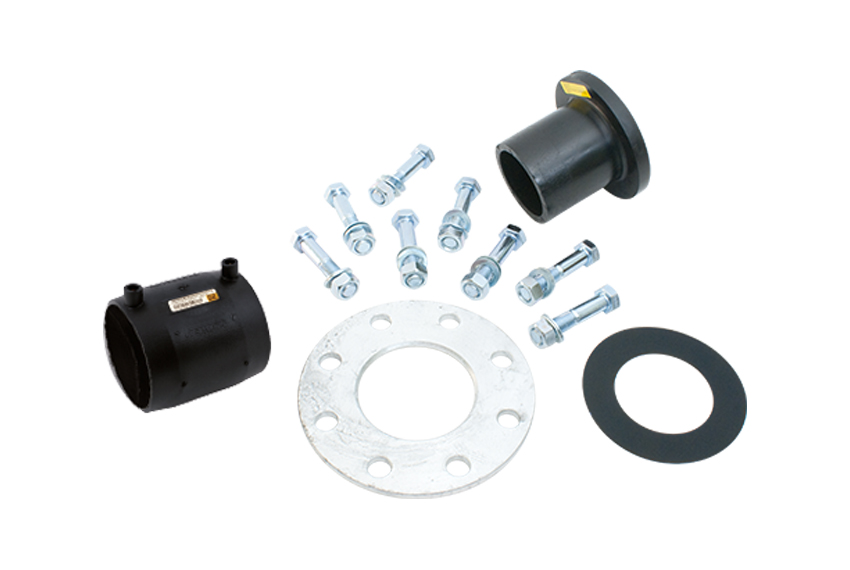

STUB FLANGE KIT
STUB FLANGE KIT
PE100 – Water PN16
d63xDN50 – d225xDN200
Kit: Coupler, Stub Flange, Backing Ring, Gasket
Further Information
d63xDN50 – d225xDN200
Kit: Coupler, Stub Flange, Backing Ring, Gasket

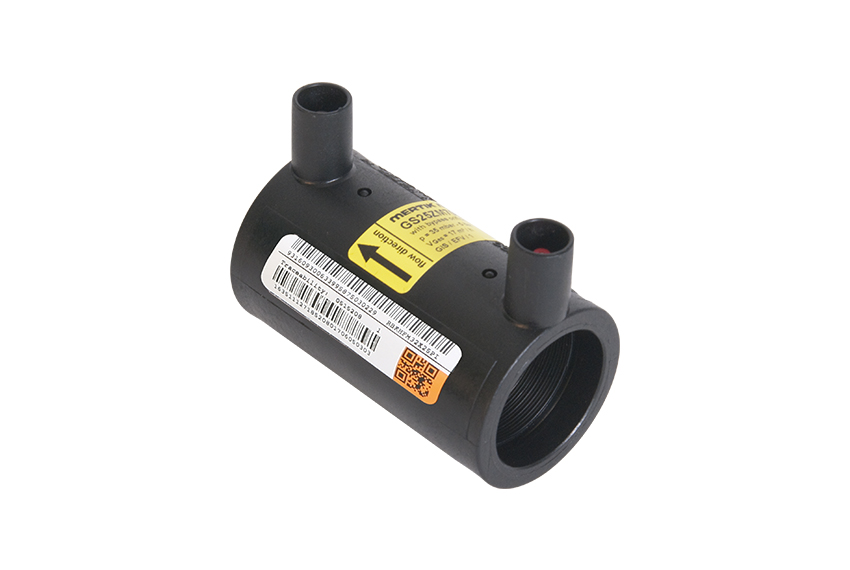

COUPLER WITH EXCESS FLOW VALVE

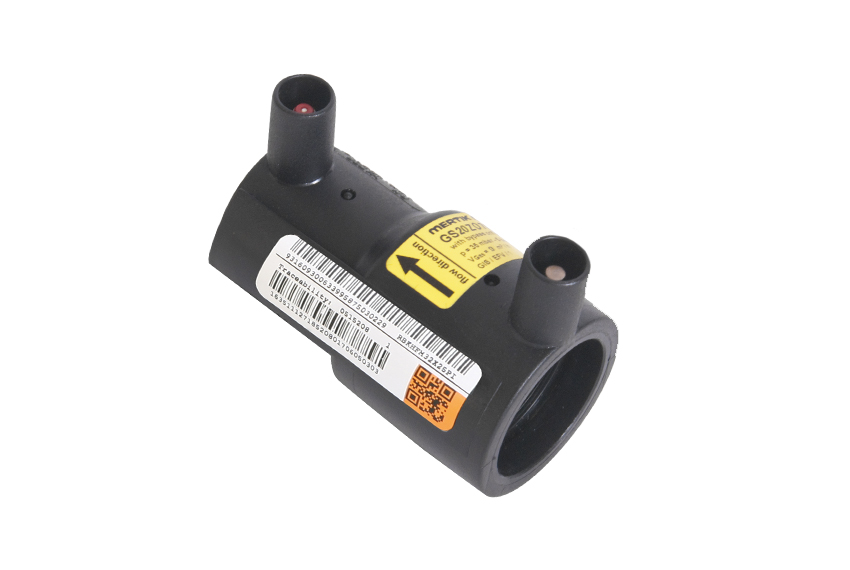

REDUCER WITH EXCESS FLOW VALVE
REDUCER WITH EXCESS FLOW VALVE
PE100 – Gas 10 / Water PN16
25 x 20, 32 x 20 and 32 x 25mm.
Further Information
25 x 20, 32 x 20 and 32 x 25mm.

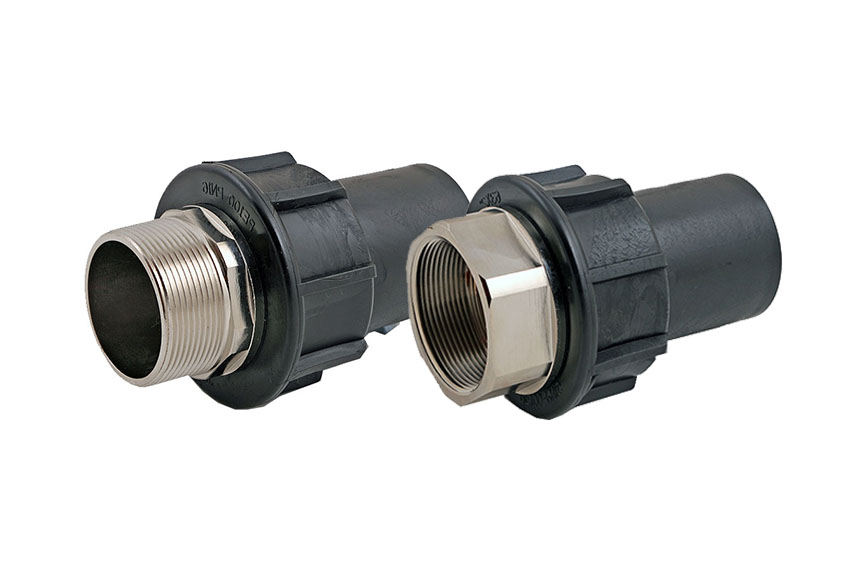

TRANSITION ADAPTORS
TRANSITION ADAPTORS
PE100 – SDR11 – Gas 10 Bar / Water PN16
d20 X ½” – 63 x 2″
Male / Female
Further Information
d20 X ½” – 63 x 2″
Male / Female
PE – STEEL TRANSITION PIECE (WELDABLE END)
PE – STEEL TRANSITION PIECE (WELDABLE END)
PE100
SDR 11 – Water PN16 / Gas 10 Bar
SDR 17 – Water PN10 / Gas upon request
25 x ¾” – 400 x 16″
Further Information
SDR 11 – Water PN16 / Gas 10 Bar
SDR 17 – Water PN10 / Gas upon request
25 x ¾” – 400 x 16″

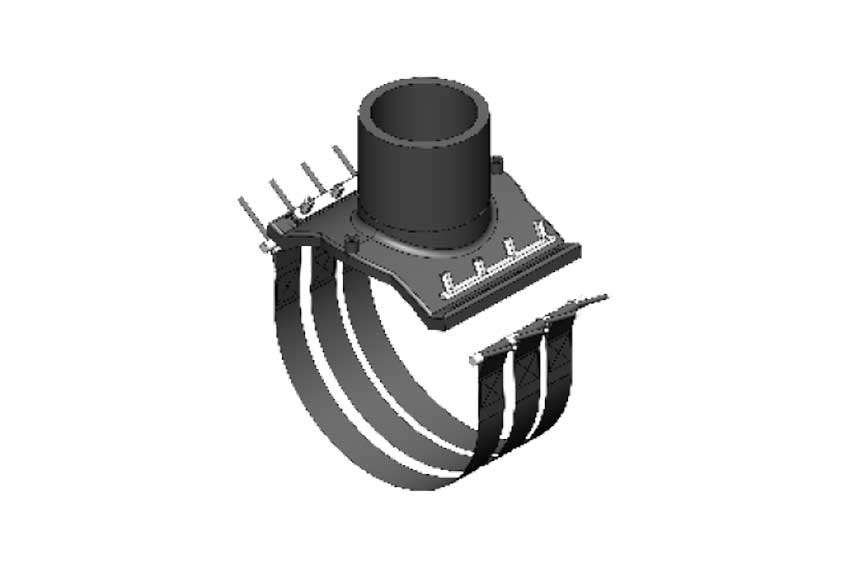

BRANCH SADDLE UNDERSTRAP
BRANCH SADDLE UNDERSTRAP
PE100 – Gas 10 Bar | Water PN16
d315x110 – 630x180mm
(110 – 180mm outlet)
Further Information
d315x110 – 630x180mm
(110 – 180mm outlet)
DUAL OUTLET REDUCING TEE
DUAL OUTLET REDUCING TEE
GEOTHERMAL APPLICATIONS
PE100 Black – Water PN16
d40 x 25mm and d50 x 25mm
Further Information
PE100 Black – Water PN16
d40 x 25mm and d50 x 25mm
FABRICATED FITTINGS
We supply a comprehensive range of standard fabricated fittings designed to fit all Butt Fusion machines.
These fittings include :
- Elbows of varying angles.
- Preformed bends.
- Equal and reduced branch tees.
- Reducers.
- End caps.
- Flanged stub adaptors to enable joining to valves or transitioning to other materials.
We also have the ability to supply a range of bespoke fabrications so as solve onsite technical issues or to reduce installation time.
Our in-house experts would be delighted to speak to you direct if you have any specific bespoke fabrication needs.
SPIGOT FITTINGS
We supply a complete range of spigot fittings which can be used in conjunction with electrofusion fittings.
They can be particularly useful with MEICA applications where fittings are required in a tight or enclosed environment.
The range of fittings are classed as full length and as such are able to be used with standard electrofusion fittings.
All spigot fittings are produced from 100 percent virgin material.

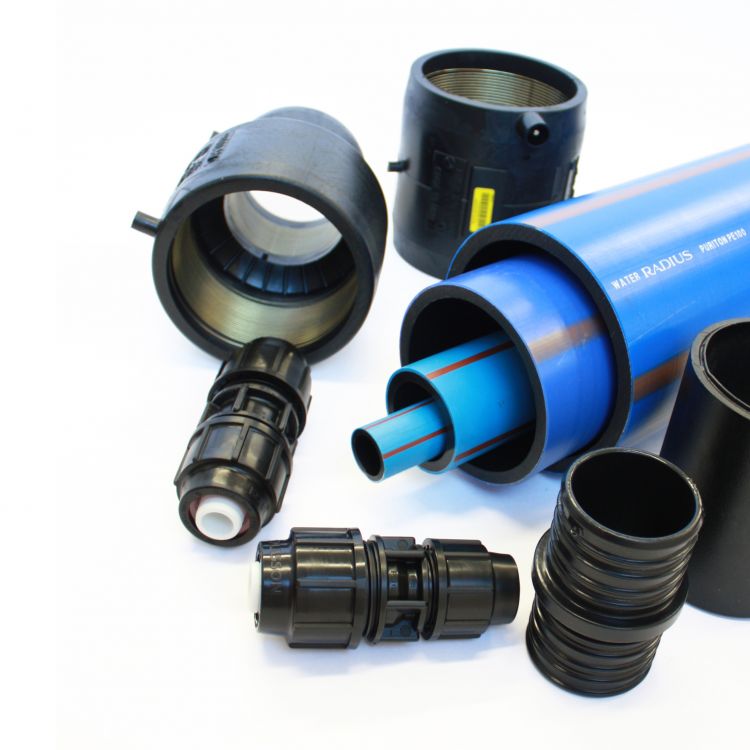

Puriton - Barrier pipe system
For the safe transportation of potable water
The barrier pipe system of choice for your new or replacement drinking water supply, Puriton® is a cutting edge solution for the safe distribution of drinking water through contaminated land.
The Puriton® system consists of a multi-layer composite structure pipe, which combines the unique characteristics of polythylene with the exceptional barrier properties of aluminium, and a range of specifically designed fittings to suit the pipe.
The system is quick and easy to install and is designed to provide a high level of protection against soil contaminants commonly found in brownfield sites.
